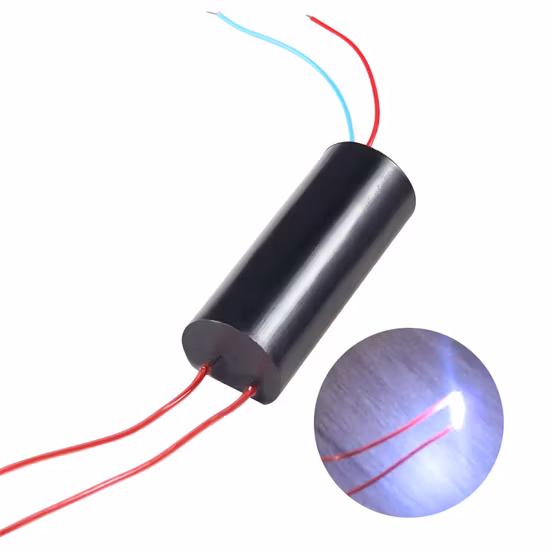

High Voltage Plasma Arc Generator Module - Image 2
Gadgets

High Voltage Plasma Arc Generator Module

6.00 $ ex-VAT (if applicable)

This compact High Voltage Plasma Arc Generator Module produces pulsed high-voltage output reaching up to 200,000V. Designed for scientific experiments and educational demonstrations, it offers high efficiency, stable performance, and simple wiring. Just connect a battery and a switch to generate impressive plasma arcs.

Free shipping on orders over 30$ (LB only)

  • Check Mark Satisfaction Guaranteed
  • Check Mark Client Confidentiality
  • Check Mark Flexible payments: cash on delivery, credit/debit cards, bank transfer, and cryptocurrencies
SKU: W-HV-MOD1 Category: Tags: , , , , , Brand:

Description

The High Voltage Plasma Arc Generator Module is a compact and efficient high-voltage generator based on the Tesla coil principle. It outputs a high-voltage pulsed current capable of generating arcs between 10mm and 20mm. Designed for educational and scientific experiments, it features a simple circuit that requires only a suitable DC power supply.

The module operates with an input voltage between DC 3V and 6V and an input current of 2A–5A. It can produce an output voltage of approximately 200,000 volts. For best performance, use a single 3.7V lithium battery such as 18650 batteries, mobile phone batteries (with protection board removed), or a 4V/6V lead-acid battery. A recommended capacity of over 2000mAh ensures stable operation.

This module serves as a finished high-voltage inverter transformer/booster ideal for small scientific experiments and demonstrations. It is not designed for ignition applications. The high-voltage output uses two high-temperature, high-pressure resistant silicone wires.

Specifications:

  • Input Voltage: DC 3V-6V
  • Input Current: 2A-5A
  • Output Voltage: ~200,000V (pulsed current type)
  • Discharge Distance: 10mm-20mm max.
  • Output High Voltage Wire Length: ~100mm silicone wires
  • Input Polarity: red = DC+
  • Dimensions: Φ24 × 64mm Approx.



Note: For experimental and educational use only
