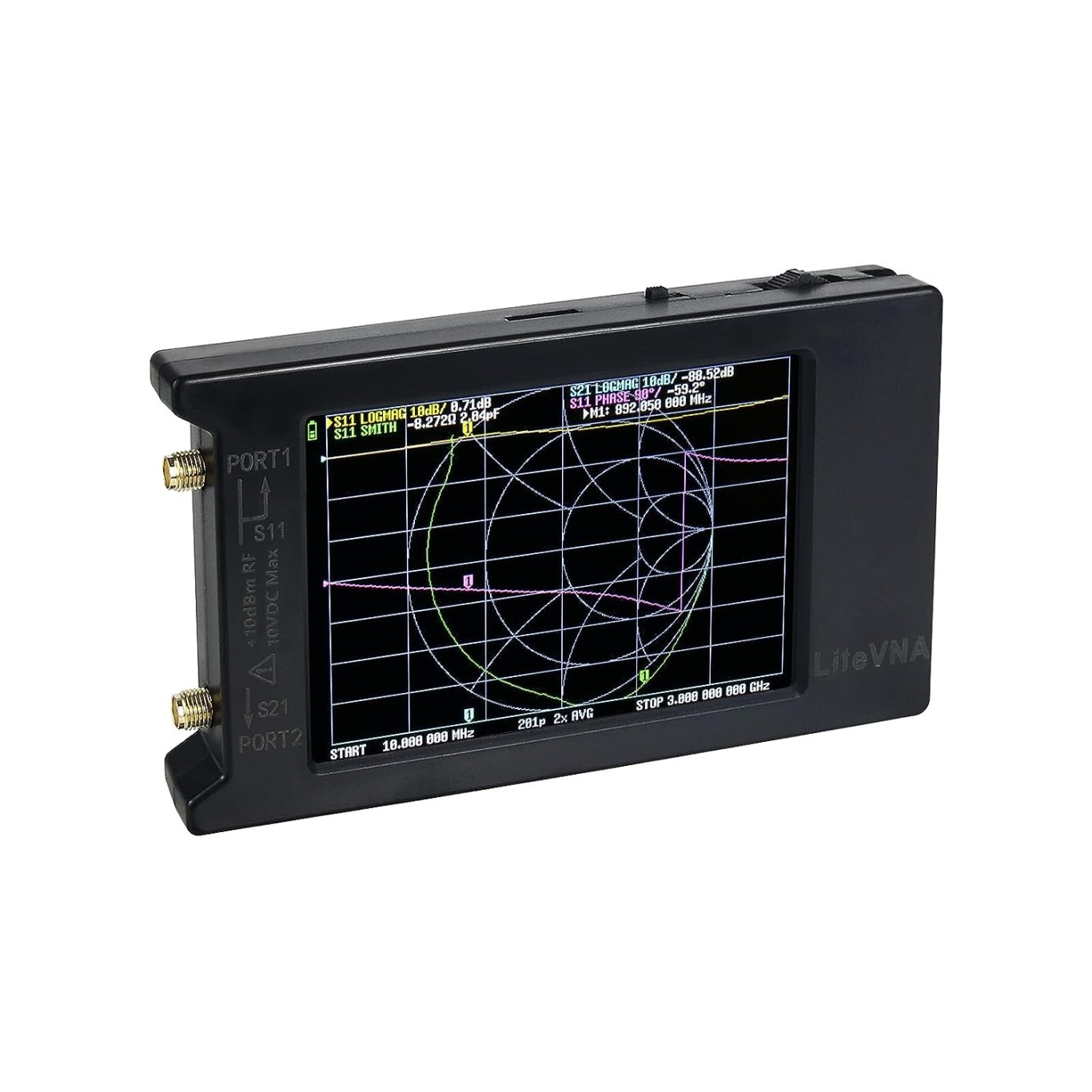

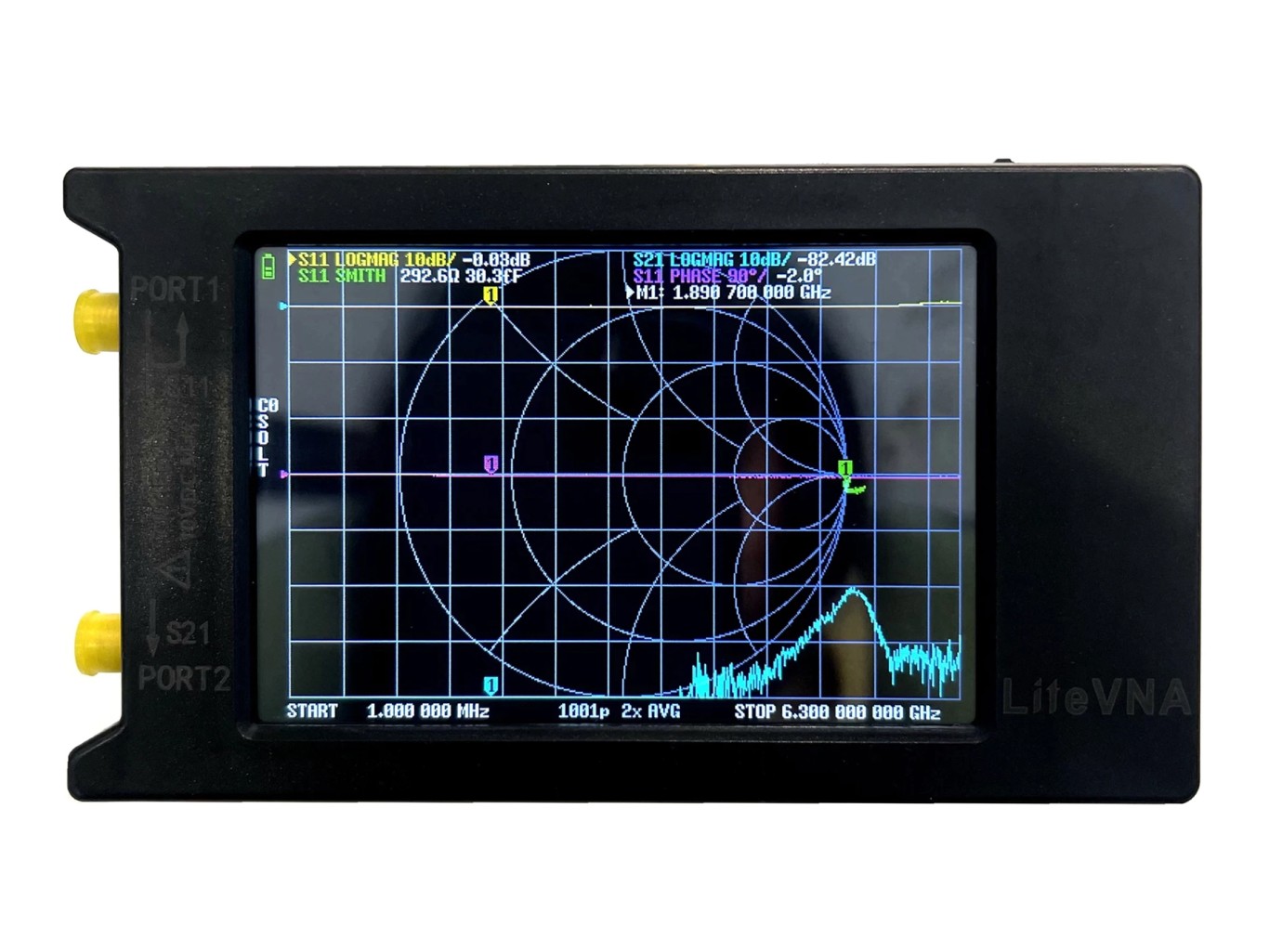

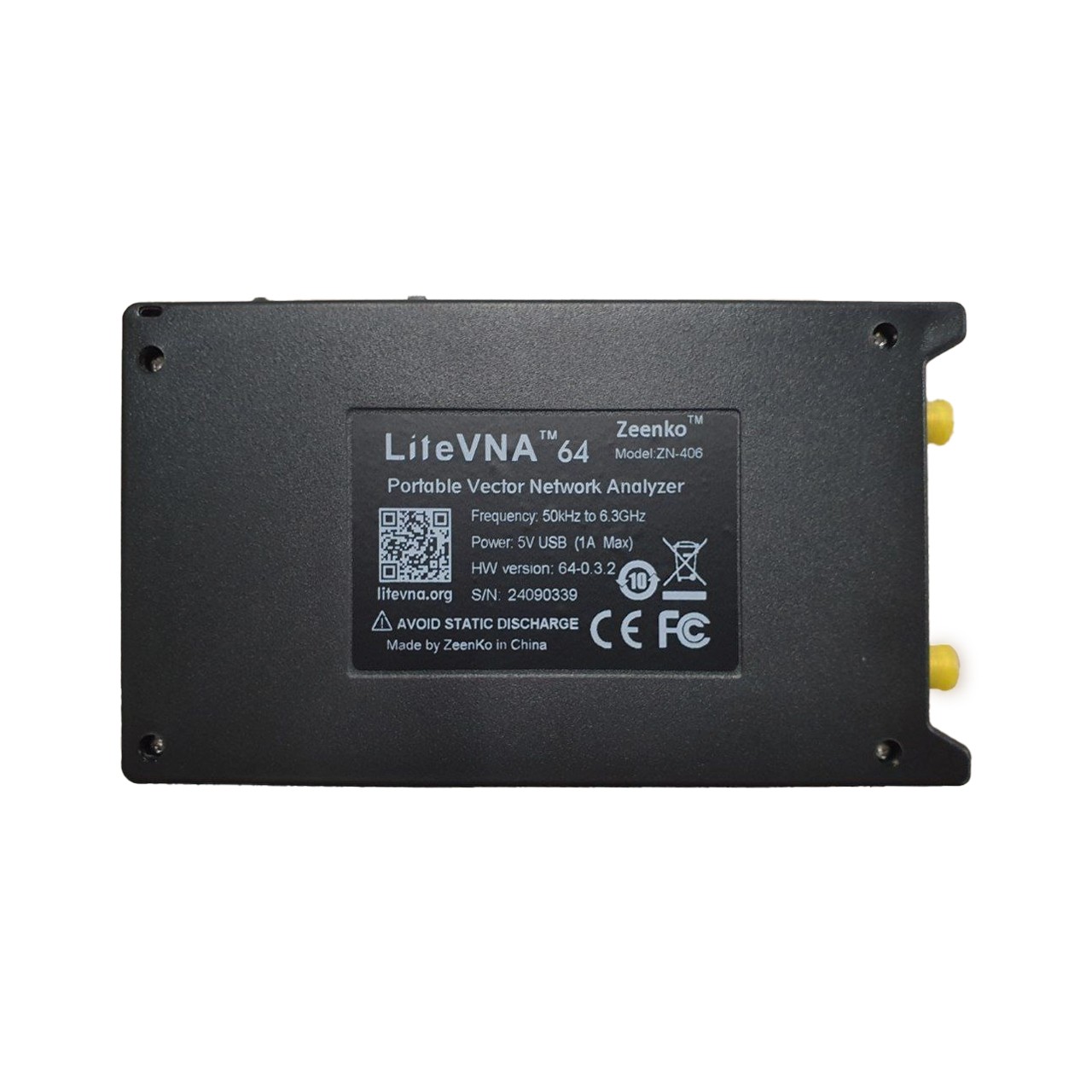

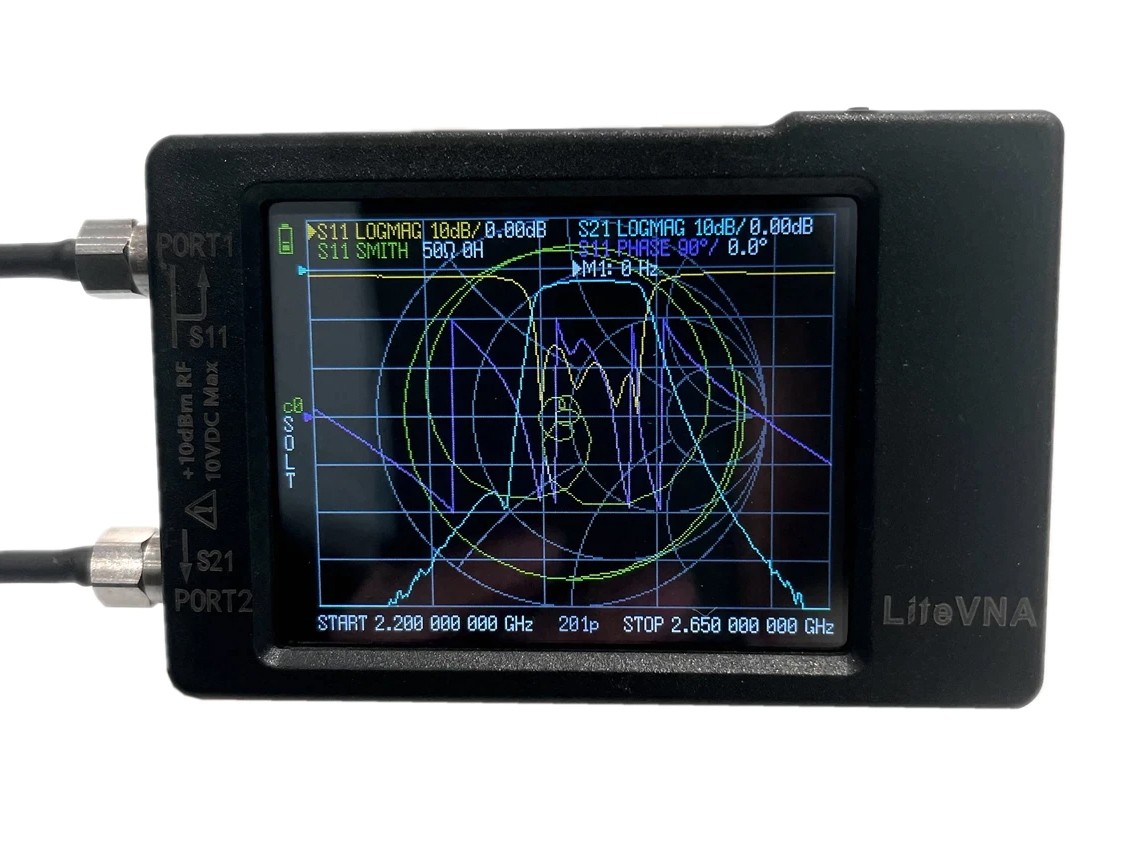

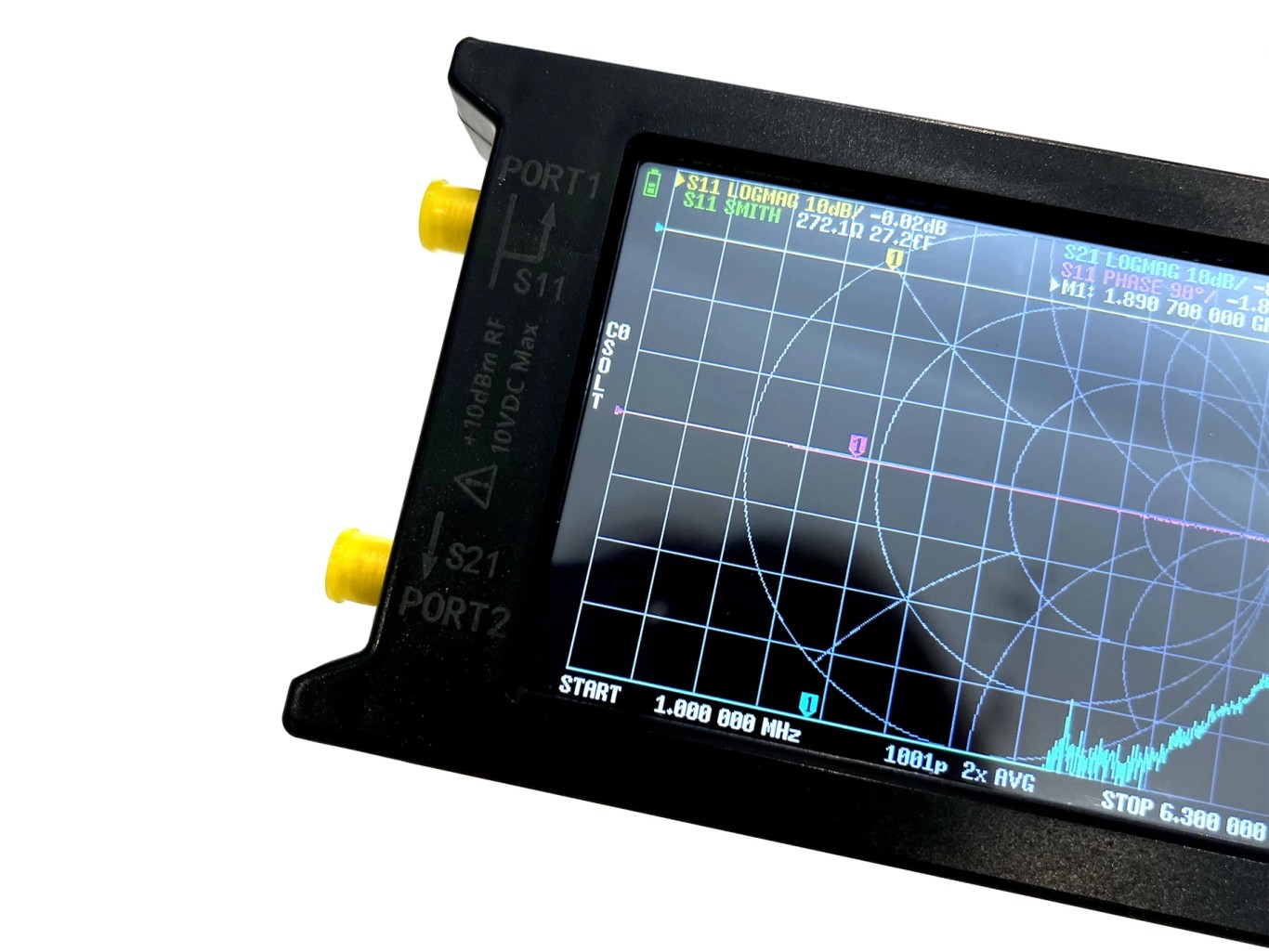

Zeenko LiteVNA 64 6.3GHz 4″
155.00 $ ex-VAT
Portable 50 kHz–6.3 GHz vector network analyzer (NanoVNA/LiteVNA) with 3.95″ touchscreen, built-in 2000 mAh battery, and full calibration kit included.
Description
Features
- Portable vector network analyzer
- Frequency range from 50 kHz to 6.3 GHz
- Supports S11 and S21 measurements through RF switching and TDR/DTF measurements via IFFT calculations
- Equipped with a 3.95″ TFT LCD touchscreen
- Built-in 2000 mAh lithium-polymer battery, rechargeable via USB
- Connectable to Android phones or PCs for extended control and enhanced data visualization
Specifications
- Frequency Range: 50 kHz – 6.3 GHz
- Dynamic Range: >70 dB (<3 GHz), >50 dB (≥3 GHz)
- S11 Noise Floor: <-50 dB (<3 GHz), <-40 dB (≥3 GHz)
- Frequency Stability: <0.5 ppm
- Sweep Rate: >550 points/second
- Sweep Points: 10–1001 points (device), 1–1024 points (USB)
- Display: 3.95″ TFT LCD touchscreen (480 x 320 resolution)
- Battery: 2000 mAh Li-polymer, rechargeable via USB

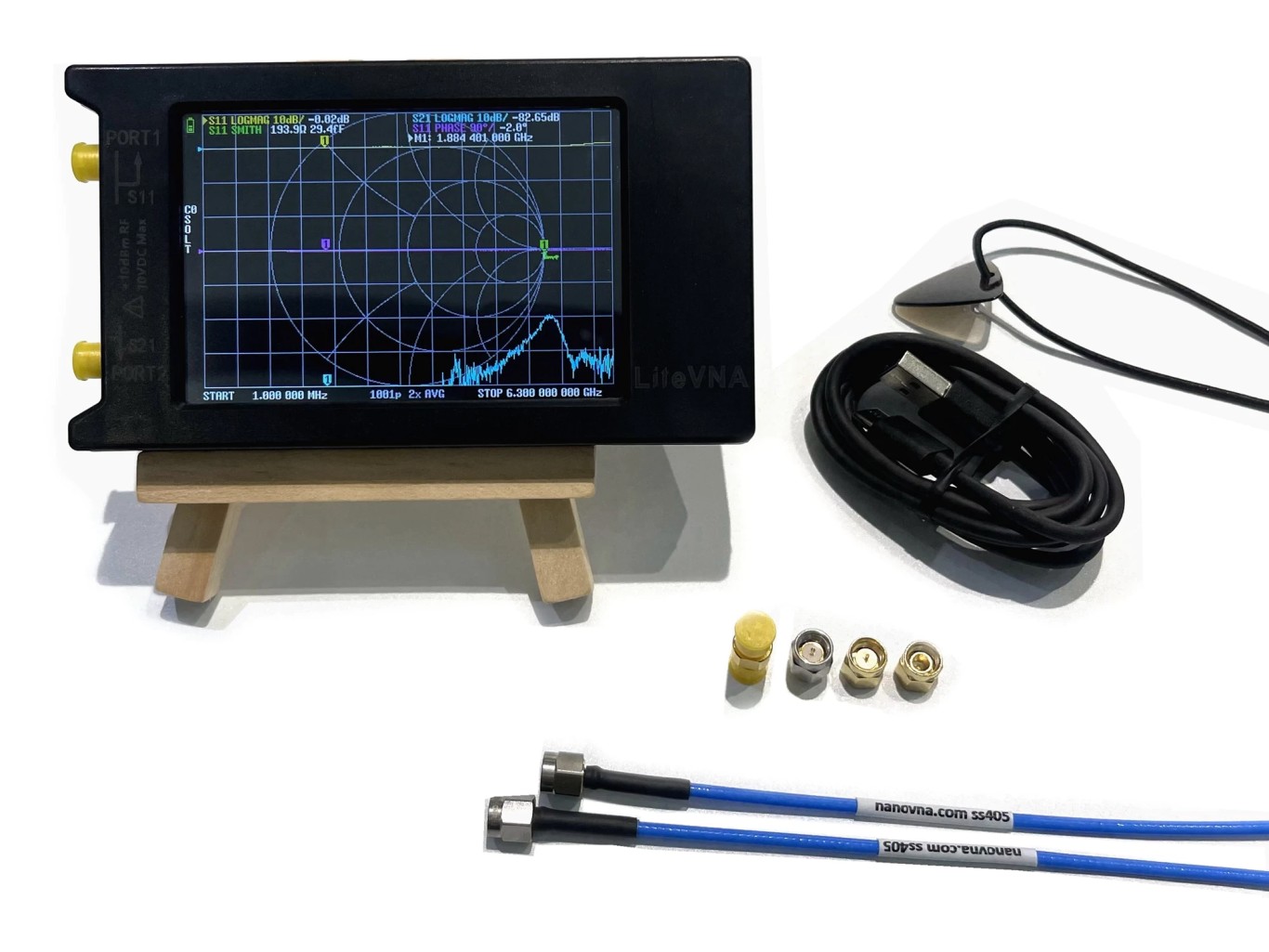

What’s Included
- 1 x Zeenko LiteVNA 64 Analyzer
- 1 x USB Cable
- 2 x 30 cm SMA Male-Male SS405 RF Cables
- 1 x SMA Male Calibration Kit OPEN
- 1 x SMA Male Calibration Kit SHORT
- 1 x SMA Male Calibration Kit LOAD
- 1 x SMA Female-Female Connector
The Zeenko LiteVNA 64 combines compact portability with powerful RF measurement capabilities, making it an ideal tool for technicians and hobbyists needing a versatile, high-frequency vector network analyzer.
