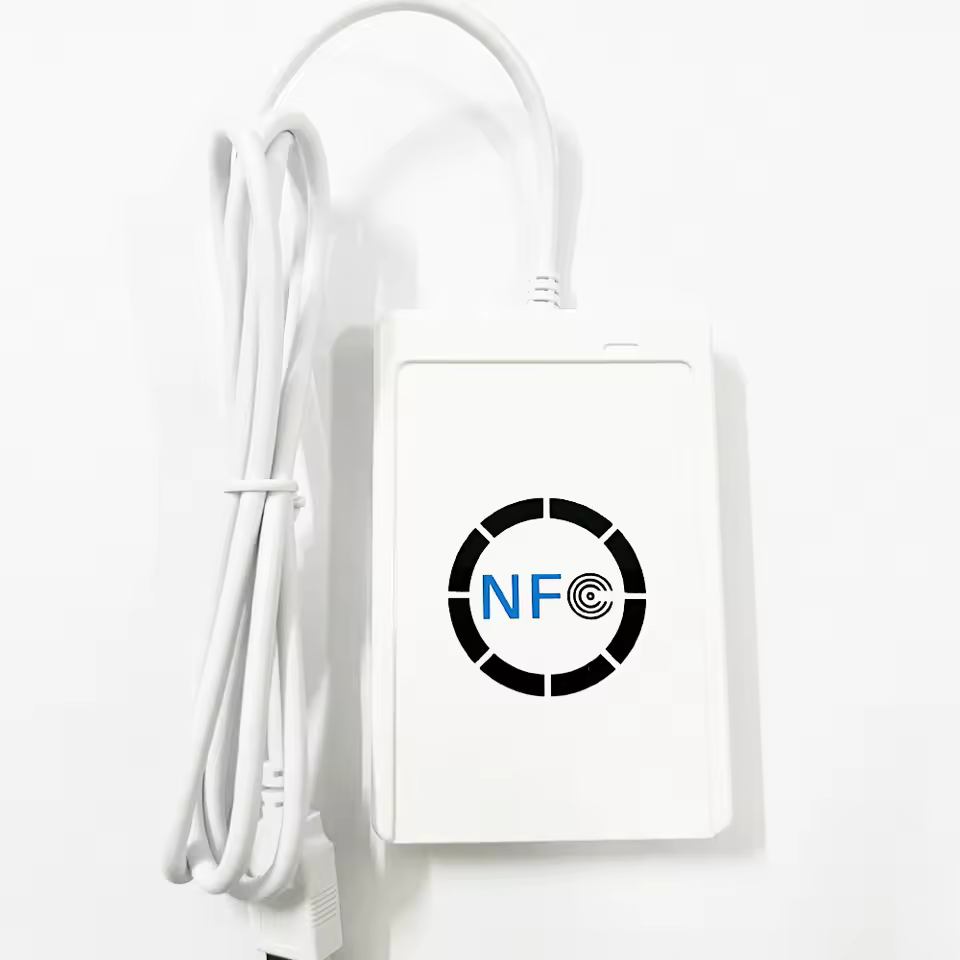

ACR122U USB NFC Reader

Description

The ACR122U USB NFC Reader is designed for reliable contactless communication. It is CCID-compliant and PC/SC-compliant, ensuring broad compatibility with various systems.

Key features include:

• Built-in antenna for contactless tag access with card reading distance up to 50 mm (depending on tag type)
• Supports most 13.56MHz protocols.
• Operation modes: reader, card emulation and peer-to-peer.
• Built-in anti-collision feature.

Applications:

• Network access control
• Bank & payment
• NFC mobile tag
• Public transportation terminal
• Automatic fare collection
• Physical access control
• Customer loyalty
• Time and attendance
• Contactless public phone
• Vending machine

Specifications:

• Dimension: 98 mm (L) x 65 mm (W) x 12.8 mm (H)
• Interface: USB Full Speed
• Operating Distance: <= 50mm (depends on tag type)
• Supply Voltage: Regulated 5V DC
• Supply Current: 200mA (operating); 50mA (standby); 100mA (normal)
• Operating Temperature: 0-50°C
• Operating Frequency: 13.56 MHz
• Smart Card Interface Support: for ISO14443 Type A & B, for Mifare, for FeliCa, 4 types of NFC (ISO/IEC18092) tags
• Operating System Support: Windows / Mac / Linux

Manufacturer: https://www.acs.com.hk/en/products/3/acr122u-usb-nfc-reader/
