ATS-20+ Portable Radio Receiver Type-C

35.00 $ ex-VAT (if applicable)

The ATS-20+ Portable Radio Receiver is a compact, full-band shortwave radio that supports FM, AM (MW, LW, SW) and SSB (LSB/USB) reception. With a 0.96″ OLED display, built-in lithium battery, USB charging, and pre-configured bands, it’s ideal for portable listening and hobby use.

Free shipping on orders over 30$ (LB only)

  • Check Mark Satisfaction Guaranteed
  • Check Mark Client Confidentiality
  • Check Mark Flexible payments: cash on delivery, credit/debit cards, bank transfer, and cryptocurrencies
SKU: W-SDR-ATS20P Category: Tags: , , Brand:

Description

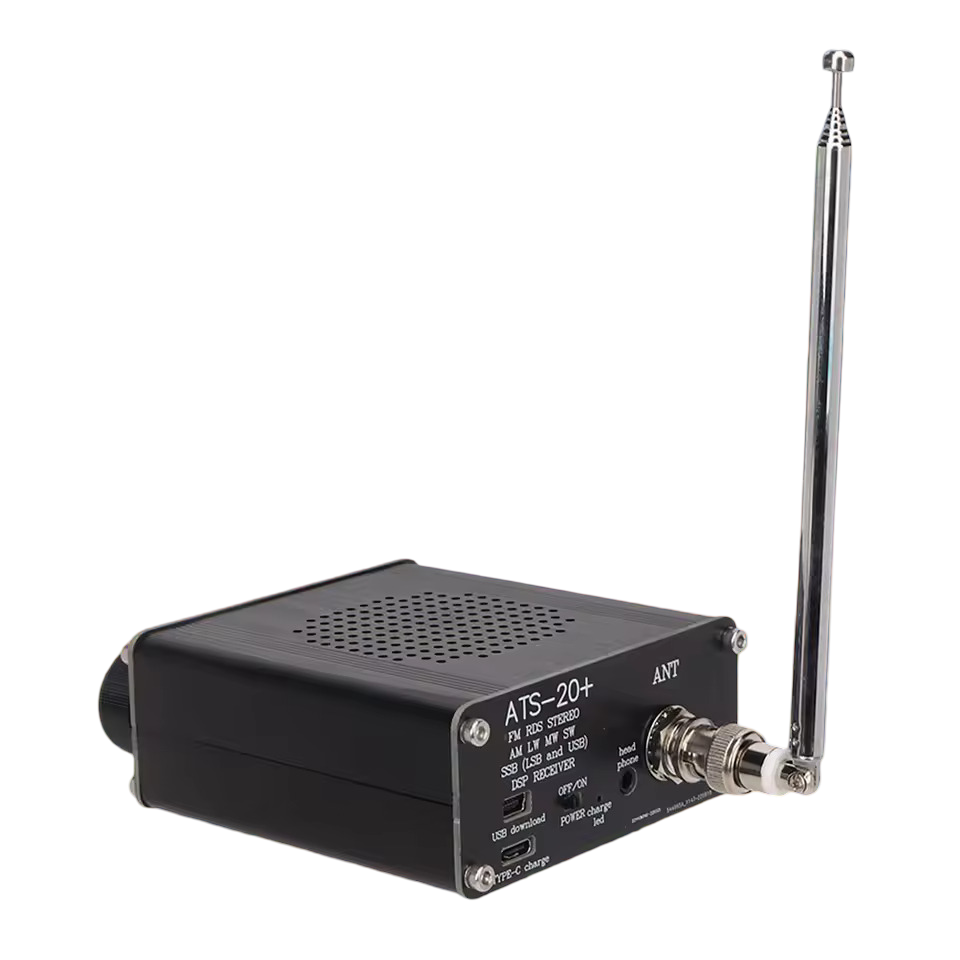

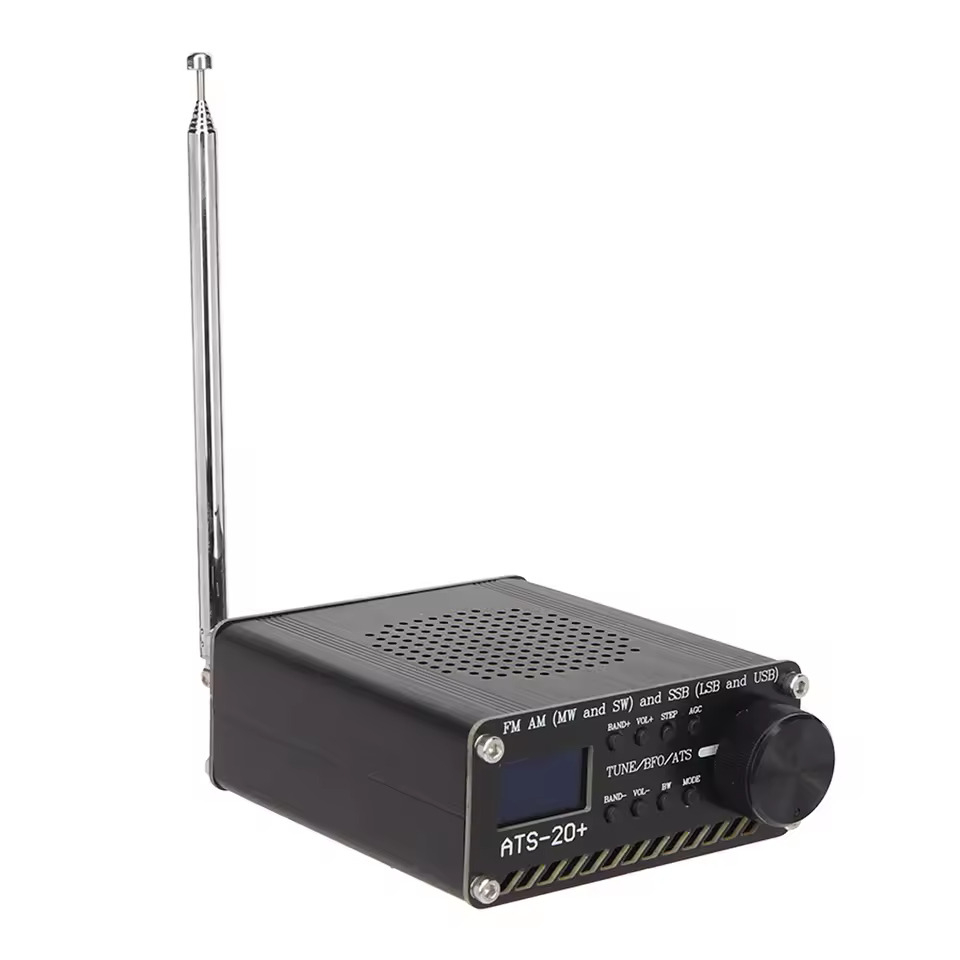

The ATS-20+ Portable Radio Receiver is built for radio enthusiasts who demand wide-band coverage and portable convenience. Featuring support for FM, AM (MW, LW, SW) and SSB (LSB/USB) modes, this receiver offers versatility in reception. A crisp 0.96″ OLED display shows frequency, mode and signal details while the compact metal and PCB construction ensures durability and portability.

This receiver is ideal for shortwave hobbyists, emergency listening, general broadcast reception and educational use. Compact enough for travel, yet capable enough for serious listening.

Specifications:

  • Model: ATS-20+ (Si4735)
  • Material: Aluminium Alloy
  • Display: 0.96″ OLED
  • Bands supported: FM, AM (MW, LW, SW), SSB (LSB/USB)
  • Audio bandwidth filters: 0.5, 1, 1.2, 2.2, 3, 4 kHz
  • Battery: 3.7 V 800 mAh
  • Charging: USB (Type-C)
  • Audio output: 3.5 mm earphone jack; 8 ohm internal speaker output 1.5 W
  • Antenna interface: BNC connector (removable)
  • Item size: approx. 10x10x4cm
  • Item weight: approx. 200g
