DSTIKE Deauther32 MINI 5G ESP32-C5 Assy

Description

Overview

The DSTIKE Deauther32 Mini is a compact, open-source ESP32-C5 development device designed for makers, developers, wireless technology education, and authorized network assessment.

It supports 2.4 GHz and 5 GHz Wi-Fi networks and features a 1.3-inch IPS color display, real-time RSSI monitoring, 12 breakout GPIOs, an addressable RGB LED, USB-C connectivity, and flexible USB or battery power.

What Is It?

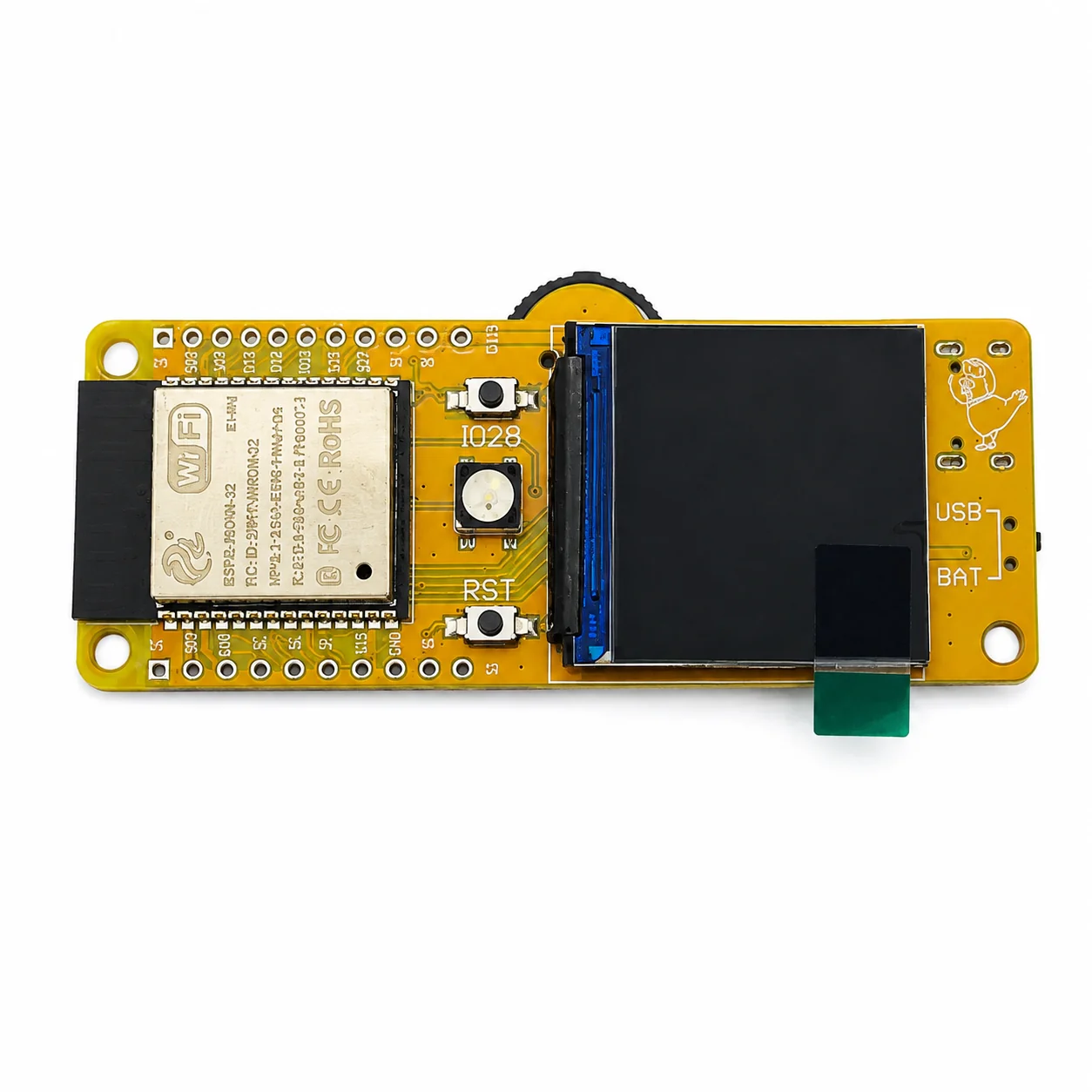

The Deauther32 Mini is a compact development platform built around the Espressif ESP32-C5 RISC-V microcontroller.

Compared with older ESP8266-based boards limited to 2.4 GHz, the ESP32-C5 provides dual-band wireless support and Wi-Fi 6 capability. This allows developers to study modern wireless environments, perform network diagnostics, and carry out controlled assessment on compatible 2.4 GHz and 5 GHz networks.

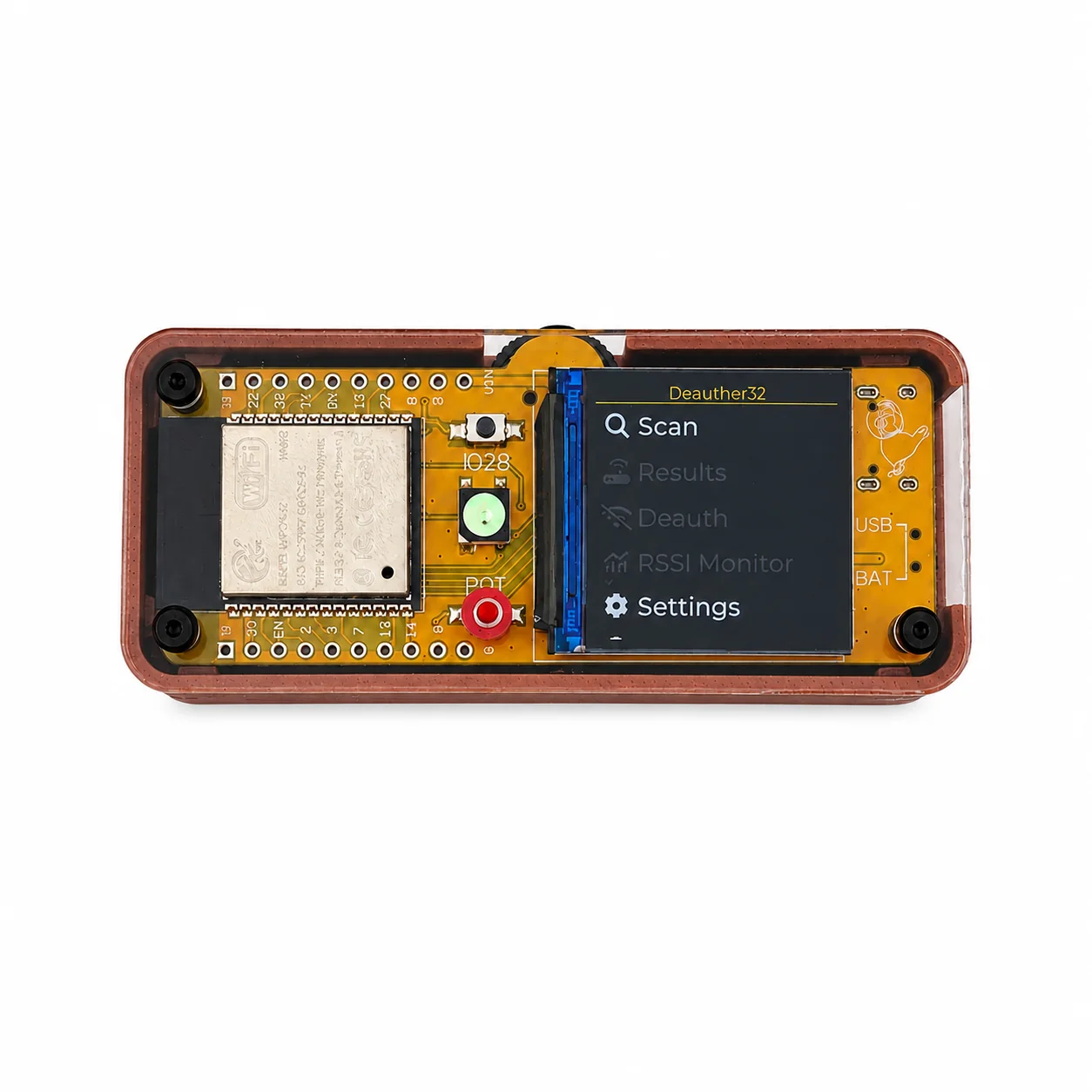

A built-in 1.3-inch ST7789 IPS color display provides a clear interface for menus, scan results, RSSI information, and operating status.

The board is supplied with Deauther32 firmware and can also be reprogrammed for custom ESP32-C5, IoT, display, sensor, and wireless communication projects.

Key Features

• Dual-Band ESP32-C5 Platform: Supports compatible 2.4 GHz and 5 GHz Wi-Fi networks.
• Wi-Fi 6 Capability: Provides a modern RISC-V platform for learning, development, and experimentation.
• 1.3-Inch IPS Color Display: The ST7789 display provides a clear interface for menus, scan results, RSSI data, and operating information.
• Real-Time RSSI Monitoring: View signal-strength changes to study coverage, signal stability, and access-point placement.
• 12 Breakout GPIOs: Connect compatible sensors, buttons, modules, and other hardware for custom projects.
• Flexible Power Selection: Use the onboard switch to select between USB and battery operation.
• Integrated Battery Charging: The assembled kit includes onboard battery charging with clear status indicators.
• Addressable RGB LED: The WS2812B LED can provide operating feedback or be programmed for custom visual effects.
• Dedicated Hardware Controls: Includes a reset button and an IO28 button that can be assigned to custom functions.
• Open-Source and Reprogrammable: Modify the supplied firmware or develop your own ESP32-C5 applications.
• Wireless network scanning and analysis.
• Controlled packet testing on compatible networks.

Specifications

• Microcontroller: Espressif ESP32-C5 RISC-V
• Wireless: Dual-band 2.4 GHz and 5 GHz Wi-Fi support
• Display: 1.3-inch ST7789 IPS color display
• GPIOs: 12 breakout GPIOs
• LED: WS2812B addressable RGB LED
• Buttons: Dedicated reset button; IO28 programmable button
• Connectivity: USB-C power, data, and firmware flashing
• Power: USB and battery power selector; integrated lithium-battery charging circuit; red and green charging-status indicators
• Firmware: Preloaded Deauther32 firmware; open-source, developer-friendly design
