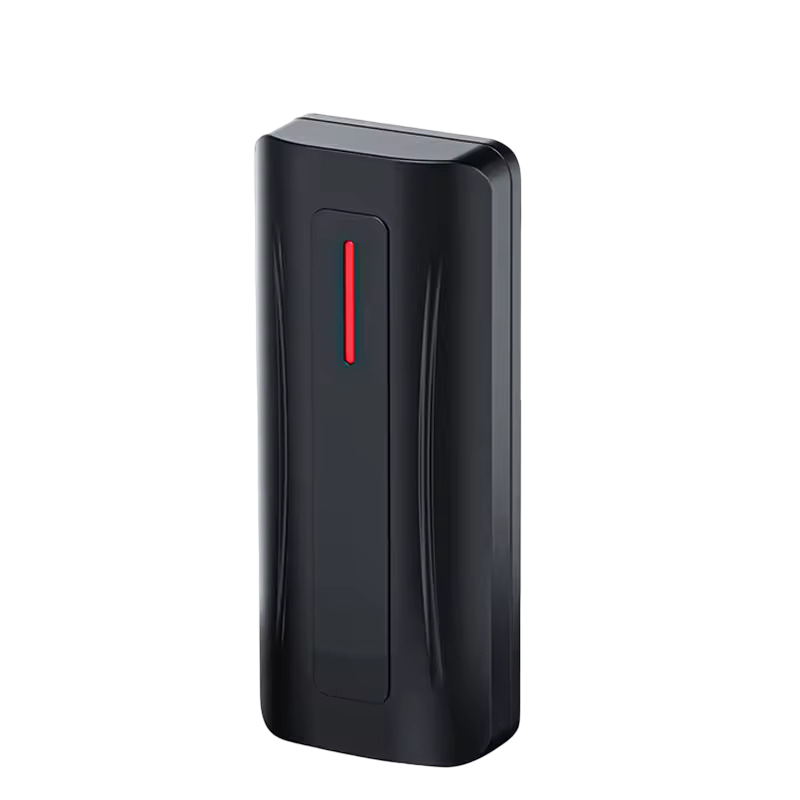

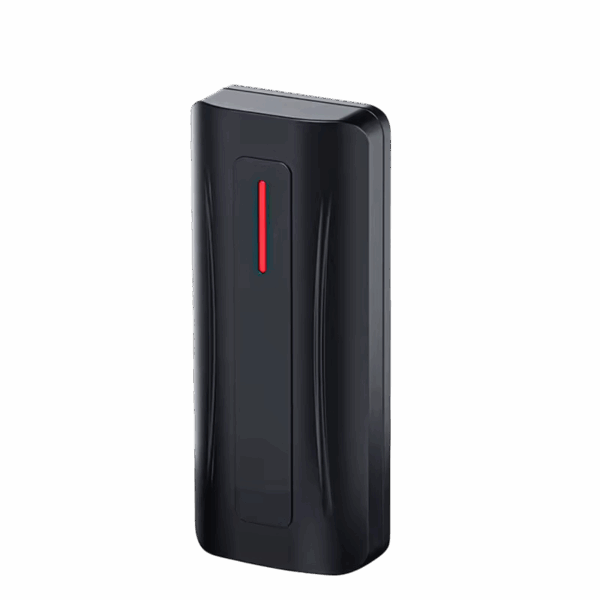

Wiegand RFID Reader IP68 125KHz/13.56MHz

Features

• Available in 125kHz (EM) or 13.56MHz (MIFARE) RFID card compatibility.

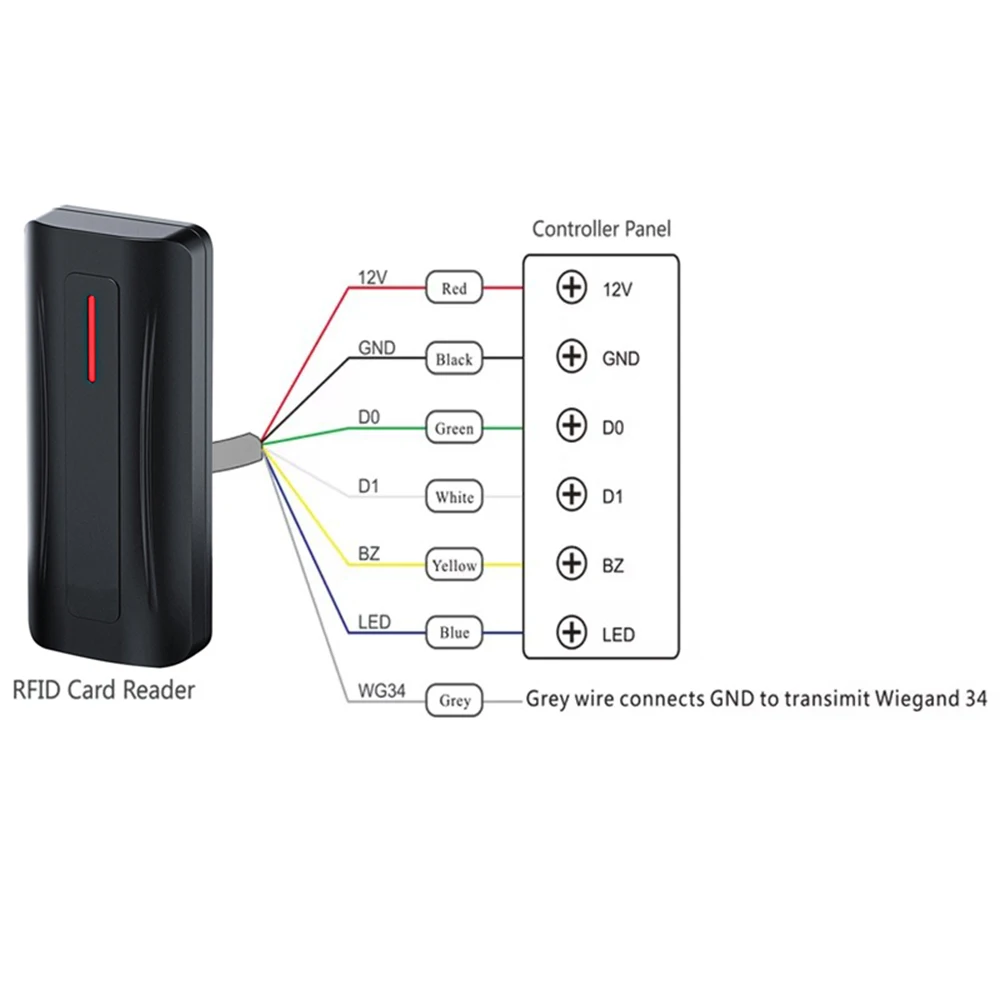

• Wiegand 26/34 output format for integration with access control panels/boards/terminals.
• IP68-rated waterproof and dustproof enclosure, safe for outdoor use.
• High-speed reading with response time under 0.1 seconds.
• Equipped with LED indicator and internal buzzer for visual and audible feedback.

Specifications

• Card Type: RFID 125kHz or 13.56MHz
• Operating Voltage: DC 9–16V
• Current Consumption: < 30mA (standby)
• Reading Distance: 2–5 cm
• Output Format: Wiegand 26 / Wiegand 34
• Waterproof Rating: IP68
• Operating Temperature: -45°C to 60°C
• Humidity Range: 10%–90% RH

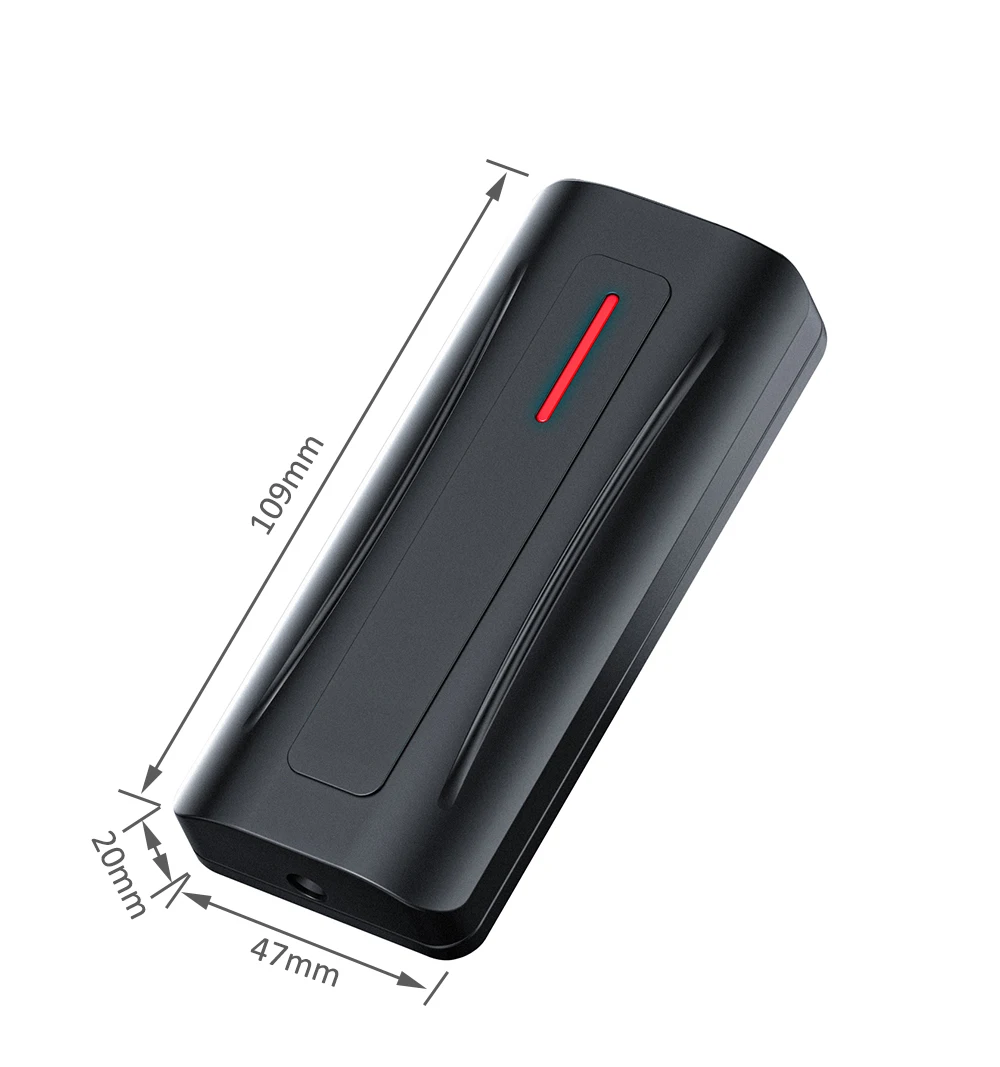

• Dimensions: 109 mm × 47 mm × 20 mm
• Material: High-durability ABS plastic housing

What’s Included

• 1 × RFID Card Reader (125kHz or 13.56MHz)
• 1 × Pre-wired Cable Harness
• 1 × Mounting Hardware Set
• 1 × User Manual

Designed for secure and efficient access control, this IP68-rated Wiegand RFID reader delivers reliable performance in demanding environments.
