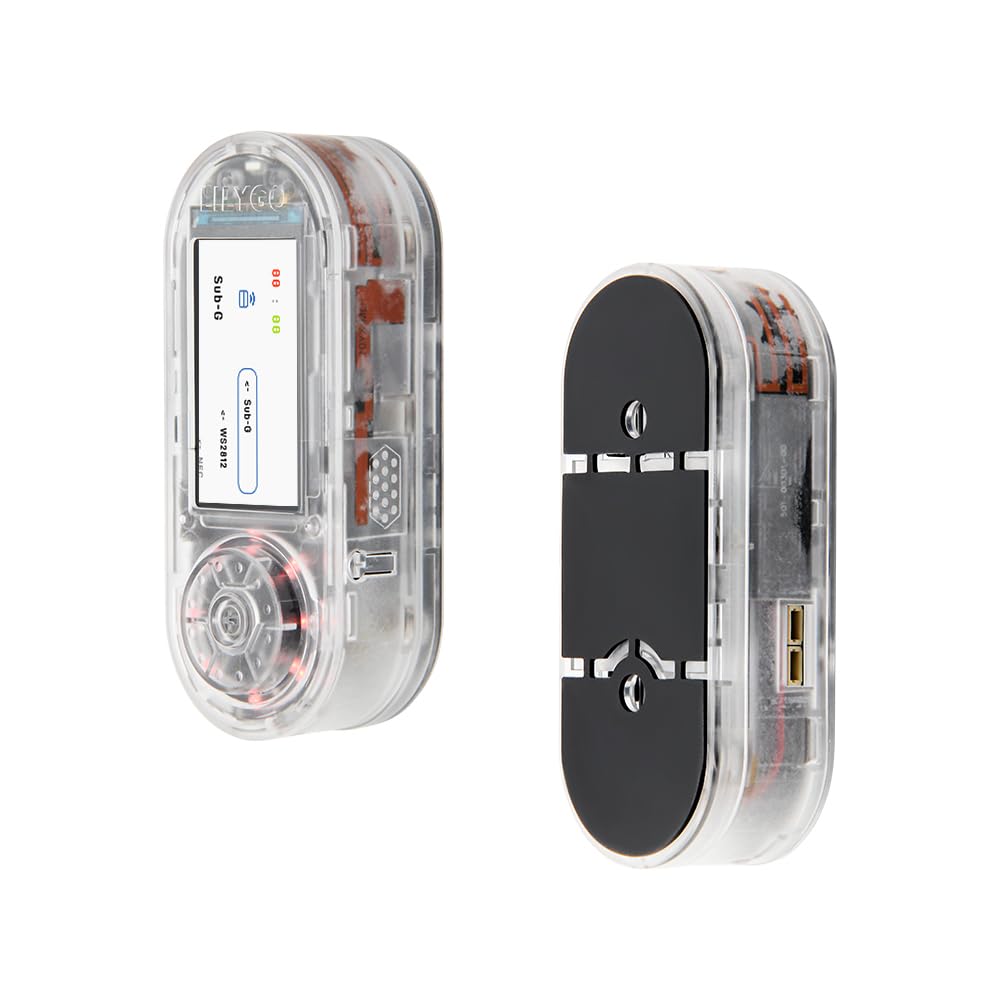

LILYGO T-Embeded Exploration Edition CC1101 ESP32 PN532
LILYGO T-Embeded Exploration Edition CC1101 ESP32 PN532 - Image 2
Development Boards

LILYGO T-Embeded Exploration Edition CC1101 ESP32 PN532

85.00 $ ex-VAT

The LILYGO T-Embedded Exploration Edition CC1101 ESP32 PN532 is a feature-rich development board powered by the ESP32-S3 dual-core LX7 processor. It includes Wi-Fi, Bluetooth 5, an integrated CC1101 RF transceiver, NFC, Infrared, and a 1.9-inch color TFT display, making it ideal for IoT, RF communication, and embedded applications.

Free shipping on orders over 30$

  • Check Mark Satisfaction Guaranteed
  • Check Mark Client Confidentiality
  • Check Mark Flexible payments: cash on delivery, credit/debit cards, bank transfer, and cryptocurrencies
SKU: W-LILYGO-CC1101-TRPRNT Categories: , , , Tags: , , Brand:

Description

The LILYGO T-Embedded Exploration Edition CC1101 ESP32 PN532 is a powerful and versatile development board designed for advanced embedded and IoT applications. It integrates the ESP32-S3 dual-core LX7 microprocessor with 16MB of Flash memory and 8MB of RSRAM, delivering strong performance for complex projects and multitasking environments.

Compatible with both Arduino-IDE and ESP-IDF, the T-Embedded board offers flexibility for developers working across multiple programming ecosystems. It includes essential onboard features such as Reset and Boot buttons, IR transmit and receive functionality, and battery voltage detection via IO04, allowing efficient power monitoring in portable setups.

The board also includes an integrated CC1101 RF transceiver for sub-1GHz wireless communication and a PN532 NFC module for near-field communication tasks. These built-in modules make it an excellent platform for IoT gateways, RF control systems, and wireless experimentation projects.

The 1.9-inch ST7789V IPS color TFT LCD display offers clear, vibrant visuals for displaying data, system status, or user interfaces. It uses an SPI interface and is driven by the ST7789V chip, providing a resolution of 170(H)RGB x 320(V).

Technical Specifications:

MCU: ESP32-S3 Dual-core LX7 Microprocessor
Flash: 16MB
RSRAM: 8MB
Programming Platforms: Arduino-IDE, ESP-IDF
Onboard Functions: Reset + Boot Buttons, IR Transmit & Receive
Battery Voltage Detection: IO04
Wireless: Wi-Fi 802.11 b/g/n, Bluetooth 5 (BLE)
RF Module: CC1101 Sub-1GHz Transceiver
NFC Module: PN532
Display: 1.9-inch ST7789V IPS Color TFT LCD
Interface: SPI
Driver Chip: ST7789V
Resolution: 170(H)RGB x 320(V)

The LILYGO T-Embedded Exploration Edition CC1101 ESP32 PN532 is an all-in-one solution for developers looking to combine powerful processing, multiple wireless standards, and compact design into one efficient embedded platform.
