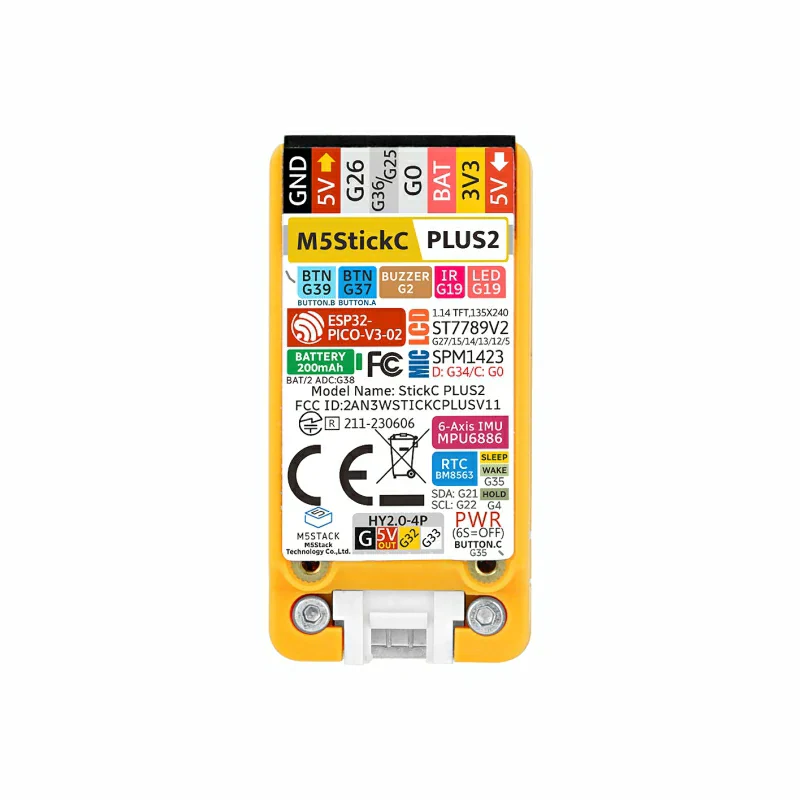

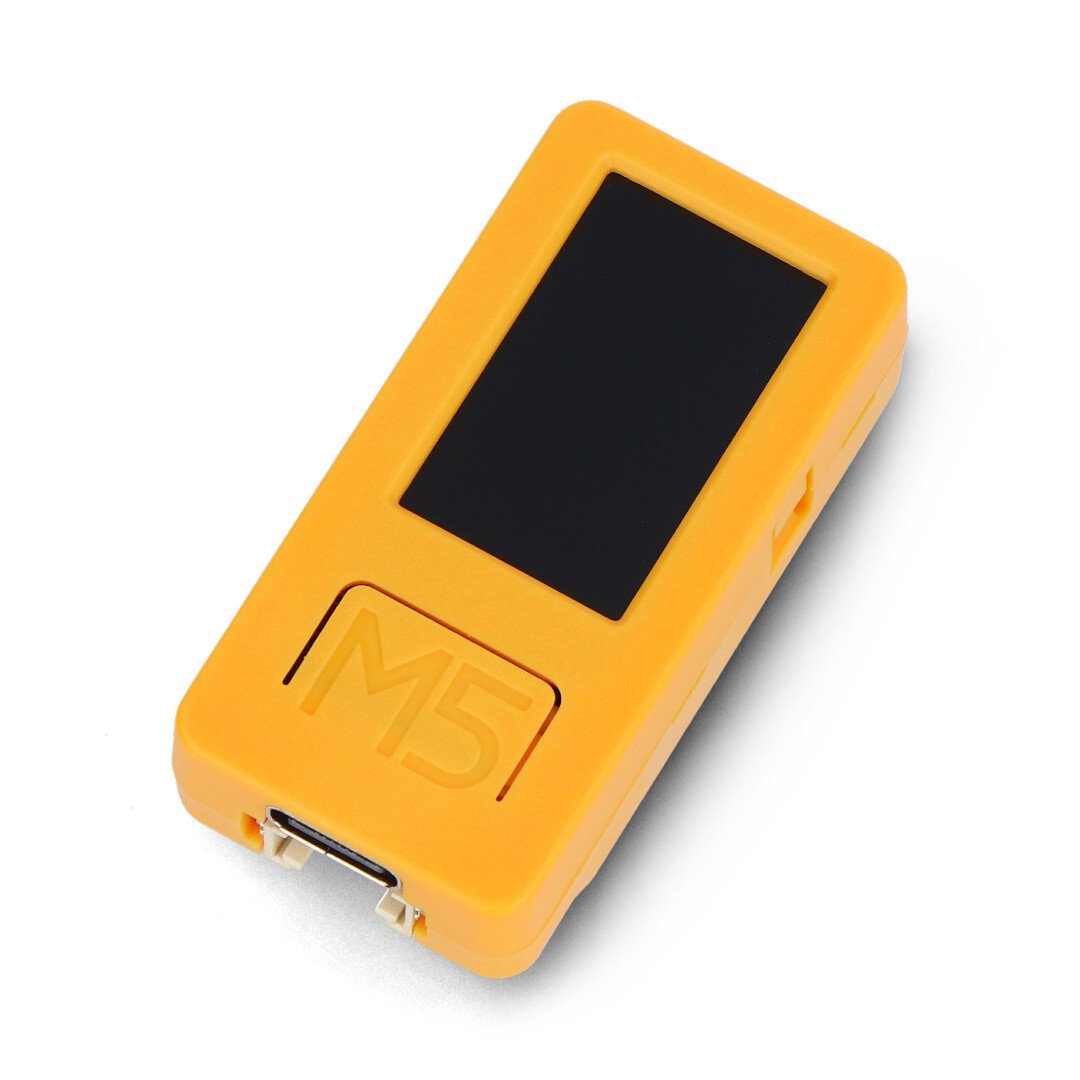

M5StickC PLUS2 ESP32 Mini IoT Development Kit
M5StickC PLUS2 ESP32 Mini IoT Development Kit - Image 2
M5StickC PLUS2 ESP32 Mini IoT Development Kit - Image 3
Development Boards

M5StickC PLUS2 ESP32 Mini IoT Development Kit

Original price was: 35.00 $.Current price is: 32.00 $. ex-VAT (if applicable)

M5StickC PLUS2 ESP32 Mini IoT Development Kit

Ultra-compact ESP32 development kit with 1.14″ color display, 6-axis IMU, microphone, and Wi-Fi. Features 240MHz dual-core processor, 200mAh battery, and Grove connectivity in a 48×25×13mm form factor. Ideal for IoT prototyping and wearables.

Free shipping on orders over 30$ (LB only)

  • Check Mark Satisfaction Guaranteed
  • Check Mark Client Confidentiality
  • Check Mark Flexible payments: cash on delivery, credit/debit cards, bank transfer, and cryptocurrencies
SKU: W-M5STKC-P2 Category: Tags: , , , Brand:

Description

M5StickC PLUS2 ESP32 Mini IoT Development Kit

A compact ESP32-based development kit featuring a 1.14″ color display, built-in IMU, microphone, and Wi-Fi connectivity. This pocket-sized IoT device is perfect for prototyping, wearables, and smart home applications.

Specifications

ESP32ESP32-PICO-V3-02
240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash
PSRAM2 MB PSRAM
Flash8 MB flash
Power Input5V @ 500mA
PortTypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
ButtonCustom button x 3
LEDGreen LED x 1(non-programmable) (sleep status indicator)
Red LED X 1(same control pin G19 as infrared transmitter tube)
IMUMPU6886
Buzzerbuilt-in buzzer
MICSPM1423
RTCBM8563
Battery200mAh @ 3.7V
Antenna2.4G 3D Antenna
PIN portG0, G25/G36, G26, G32, G33
Operating Temperature0°C to 40°C
Case MaterialPlastic ( PC )

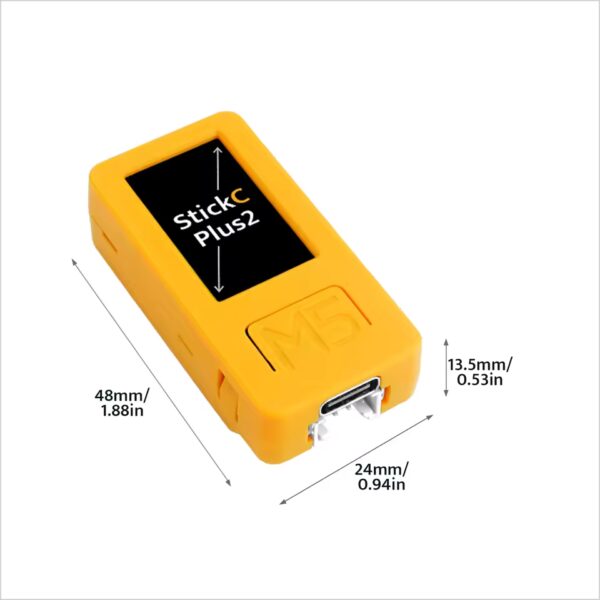

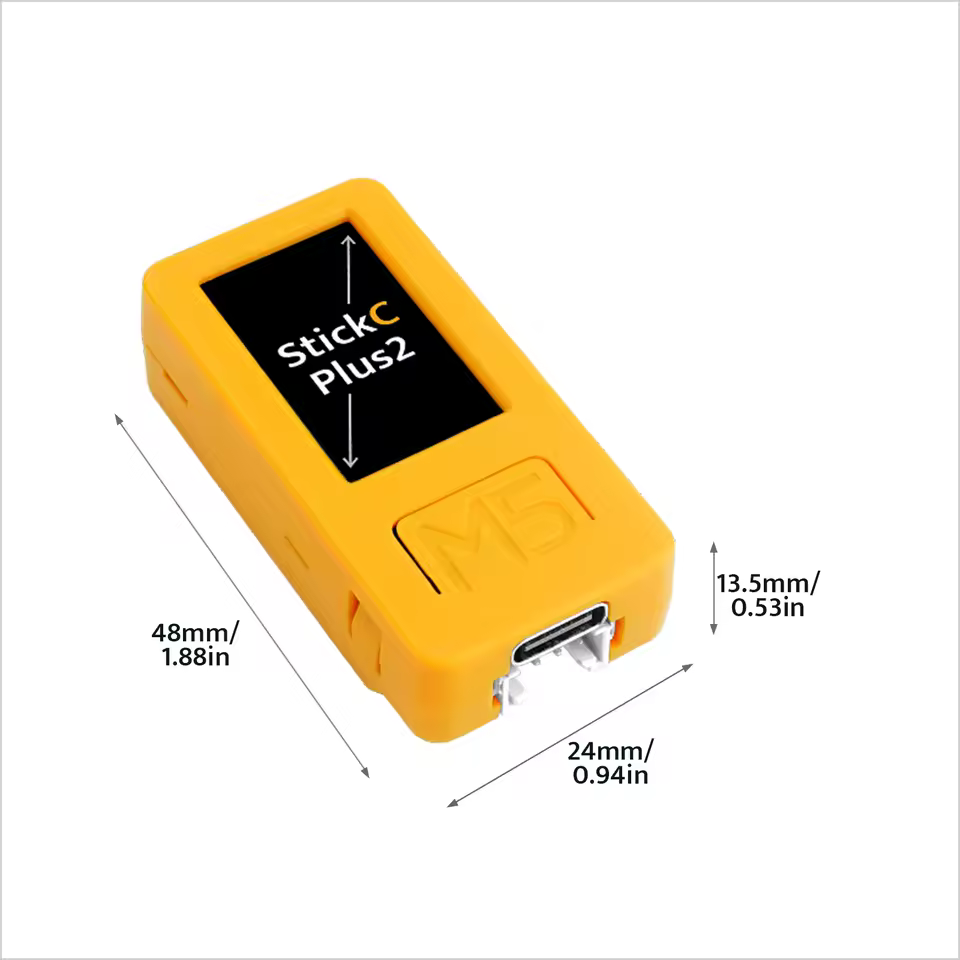

Product Size48 x 25 x 13mm
Package Size114 x 64 x 23mm
Product Weight17g
Package Weight24.8g

Package Includes:

  • M5StickC PLUS2 main unit

Development Support:

  • Compatible with Arduino IDE, UIFlow, and MicroPython, .NET nanoFramework
  • Open-source libraries and examples available
  • M5Stack ecosystem compatible
