RTLSDR V4L R828S

Description

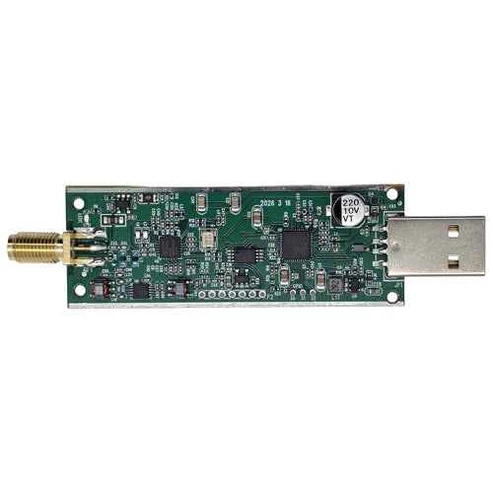

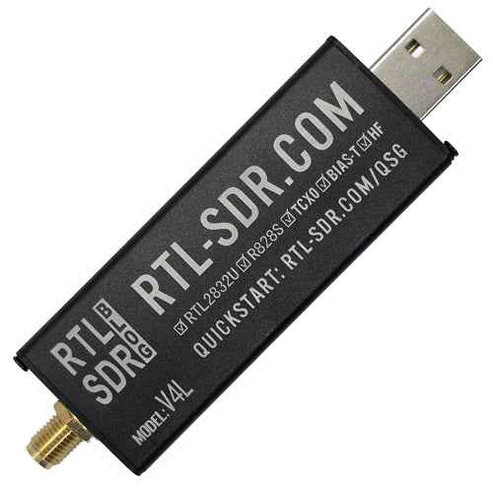

The RTL-SDR Blog V4L (Lite) is a compact and cost-effective USB software defined radio receiver. Built around the RTL2832U chipset and R828S tuner with a diplexed HF and UHF/VHF input, the V4L delivers improved sensitivity over the V4 by reducing the number of input filtering branches, while retaining core features including a 1 PPM TCXO, built-in HF upconverter, bias tee circuit, and aluminum enclosure with passive cooling.

Unlike the V4 which uses a triplexed input, the V4L (Lite) design uses a diplexed input between HF and UHF/VHF. With one fewer branch for input filtering, the result is improved sensitivity – making it a strong choice for applications where reception performance matters.

Key Features

• Wideband USB software defined radio receiver covering HF, VHF, UHF, and L-band
• Diplexed HF and UHF/VHF input design for improved sensitivity
• 1 PPM temperature compensated crystal oscillator (TCXO) for improved frequency stability
• Built-in HF upconverter
• Bias tee circuit
• Aluminum enclosure with passive cooling and improved shielding
• Compatible with Windows, Linux, macOS, Android, and Raspberry Pi

Specifications

• Chipset: RTL2832U ADC
• Tuner: R828S
• Input: Diplexed HF and UHF/VHF
• Oscillator: 1 PPM TCXO
• Antenna Connector: SMA female
• Enclosure: Aluminum with passive cooling
• Power: USB

Typical Uses

• HF, VHF, UHF, and L-band signal monitoring
• Amateur radio monitoring and experimentation
• ADS-B aircraft tracking
• Weather and satellite signal reception
• Spectrum analysis and RF experimentation
• Aviation, marine, and public-service signal monitoring
• Digital radio and trunked radio decoding



Drivers and software support for the V4L are still limited. WITS will not provide technical support related to drivers and software compatibility. Please consider the V3/V3c instead, unless you’re comfortable troubleshooting drivers and software.

V4L Official User Guide
