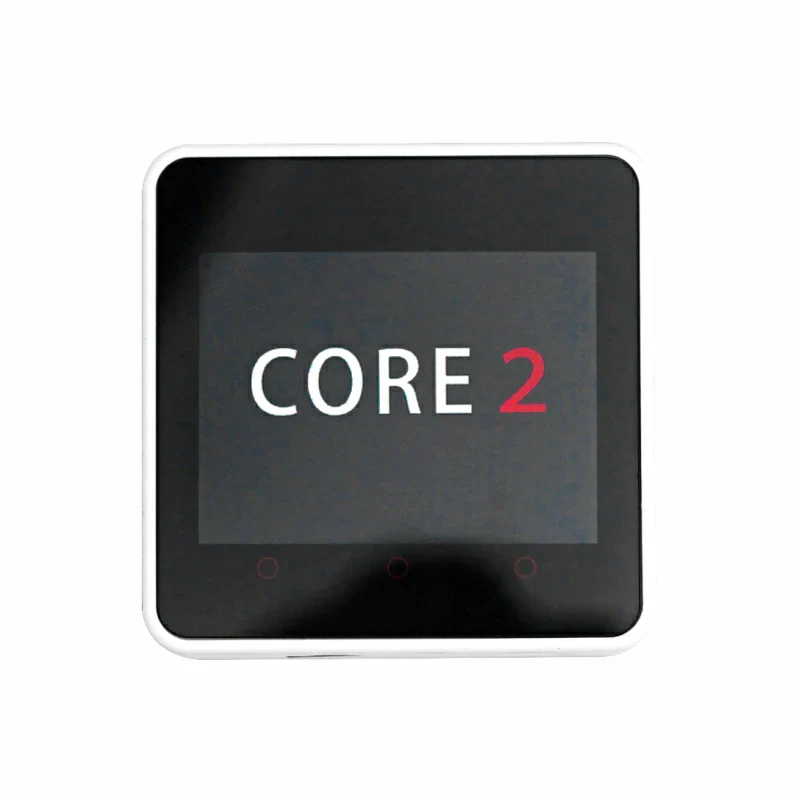

M5Stack Core2 ESP32 IoT Development Kit

68.00 $ ex-VAT (if applicable)

3rd gen M5Stack kit with 2.0″ touchscreen, ESP32-D0WDQ6-V3 (16MB flash, 8MB PSRAM), 6-axis IMU, microphone, 500mAh battery, and Wi-Fi. Includes USB-C cable and supports Arduino/UIFlow/MicroPython/nanoFramework

Available on backorder

Free shipping on orders over 30$ (LB only)

  • Check Mark Satisfaction Guaranteed
  • Check Mark Client Confidentiality
  • Check Mark Flexible payments: cash on delivery, credit/debit cards, bank transfer, and cryptocurrencies
SKU: W-M5STK-CORE2 Category: Tags: , , , Brand:

Description

The M5Stack Core2 development kit featuring a 2.0″ touchscreen display, built-in IMU, microphone, and dual-core ESP32 processor.

Key Features:

  • 2.0″ capacitive touch screen (320×240 resolution)
  • Built-in IMU (6-axis accelerometer & gyroscope)
  • Built-in microphone
  • Vibrating motor
  • TF card slot (supports up to 16GB)
  • Dual-core ESP32 processor
  • Built-in battery (500mAh) with charging circuit
  • M-Bus socket & Pogo pin connector

Specifications:

ESP32-D0WDQ6-V3240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash16MB
PSRAM8MB
Input Voltage5V @ 500mA
InterfaceTypeC x 1, GROVE(I2C+I/0+UART) x 1
IPS LCD Screen2.0″@320*240 ILI9342C
Touch ScreenFT6336U
Speaker1W@NS4168
LEDGreen power indicator light
ButtonPower button, RST button, Virtual screen button*3
Vibration reminderVibration motor
MICSPM1423
I2S Power AmplifierNS4168
6-axis IMUMPU6886
RTCBM8563
PMUAXP192
USB ChipCH9102F
DC-DC BoostSY7088
TF card slot16G Max
Lithium Battery500mAh @ 3.7V
Antenna2.4G 3D antenna
Operating temperature0°C to 60°C
Base screw specificationsHexagon socket countersunk head M3

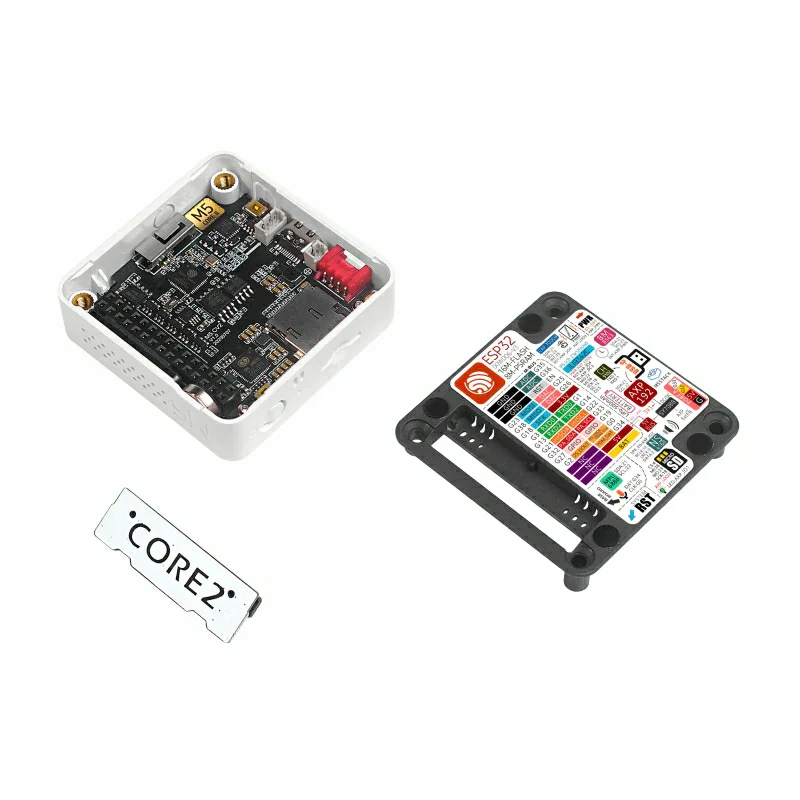

Internal PCB board reserved interfaceBattery interface (specification: 1.25mm-2P)
USB line interface (specification: 1.25mm-4P)
Case MaterialPlastic ( PC )
Product Size54 x 54 x 16.5mm
Package Size75 x 60 x 20mm
Product Weight54.8g
Package Weight83.9g

Package Includes:

  • 1x M5Stack Core2
  • 1x 20cm Type-C USB Cable
  • 1x Hex Key

Development Platform Support:

  • Arduino IDE
  • UIFlow (Blockly & MicroPython)
  • MicroPython
  • .NET nanoFramework
